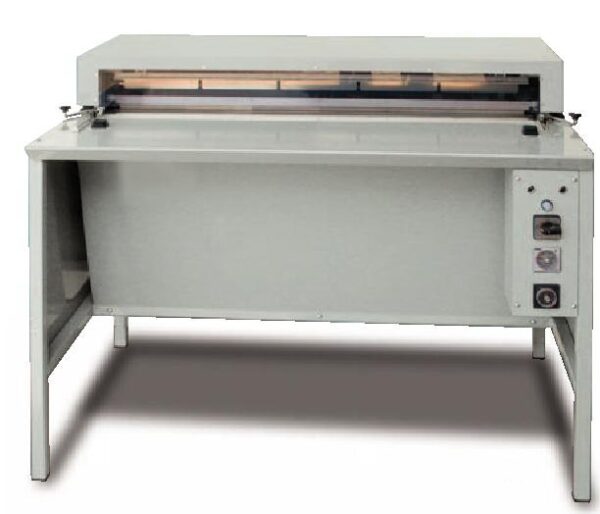

System Brilka LF-850 Open or covered edges of fronts creaser

System Brilka LF-850 Open or covered edges of fronts creaser
(Previouse model name System Brilka VU)
Model LF-850-Speed
With this new LF-850 it is possible to crease open or covered edges of fronts or other parts with straight folding in one step. One special and brand new pressure system prepare maximum power with low temperature and low pressing time for high quality pressing result.
Quick adjustment of folding size and folding depth. Exact in line alignment. Low energy requirement and consumption.

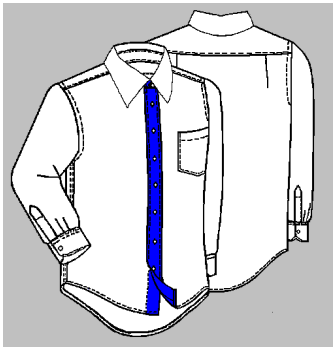

Model LF-850-Speed Edge Creasing Machine Used for blouse or shirt manufacturing or technical material Article blouse or shirt front parts

Article size
Front part length max. 850 mm max.
Front part width 450 mm
Productivity (h)
1x Folding (open edge) approx. 250 articles (h)
2x Folding (covered edge)  approx. 200 articles (h)
Technical details
Temperature adjustable from 100 – 200°C
Pressing timeadjustable from 1 – 20 sec.
Pressing power
max. power  adjustable from 15.000 N at 6 bar
min. power  down to 5.000 N at 2 bar

Size and weight L x W x H Working place adjustment 1060 mm x 845 mm x min.1370 mm / max.1520 mm 150 mm
Weight approx. 150 kg
