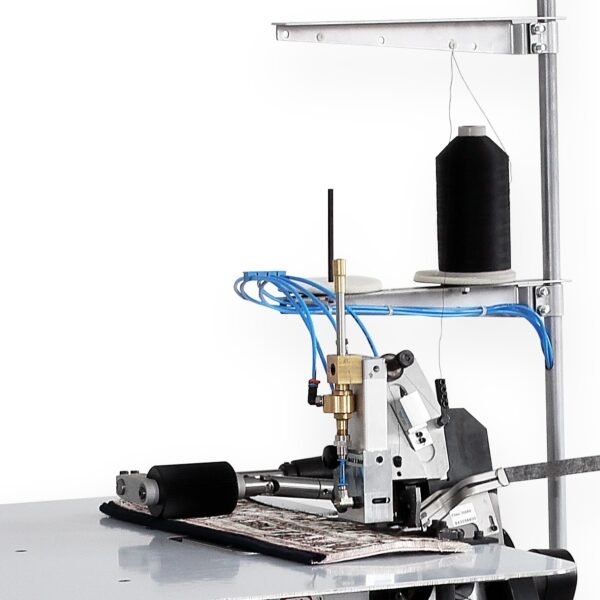

TITAN 4510CHX
High-speed ultra-narrow 4 mm overedging machine for woven handlook carpets up to 18 mm thick, with cutting device, pneumatic footlift and special pile pusher included.
High speed ultra small 4 mm overedging of handlook carpets with maximum carpet thickness up to 18 mm.

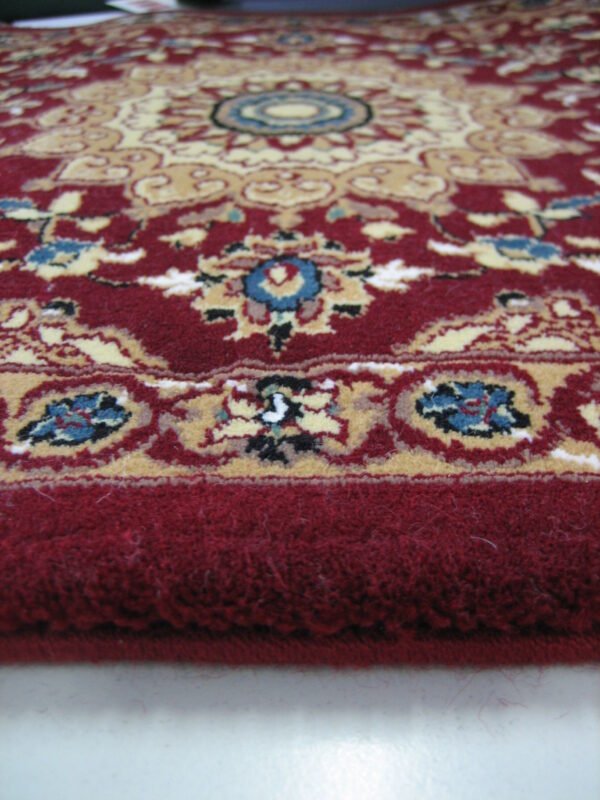

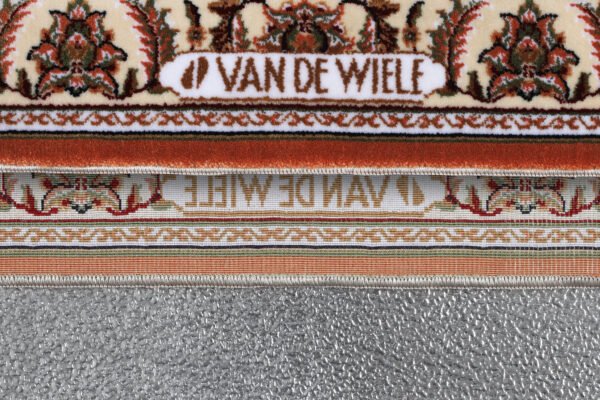

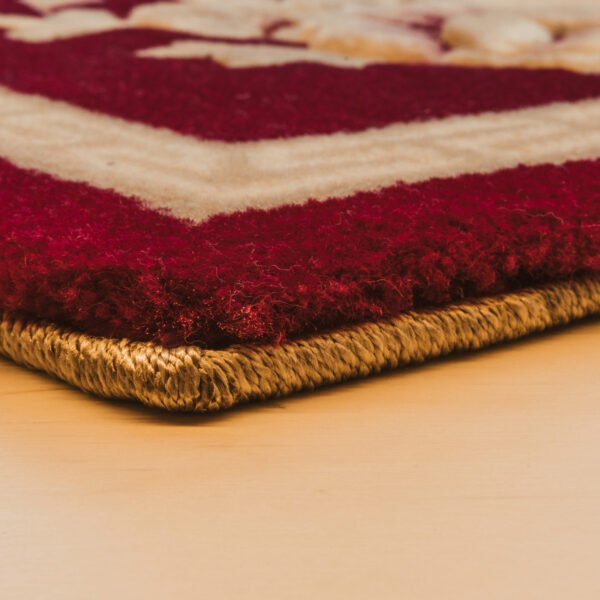

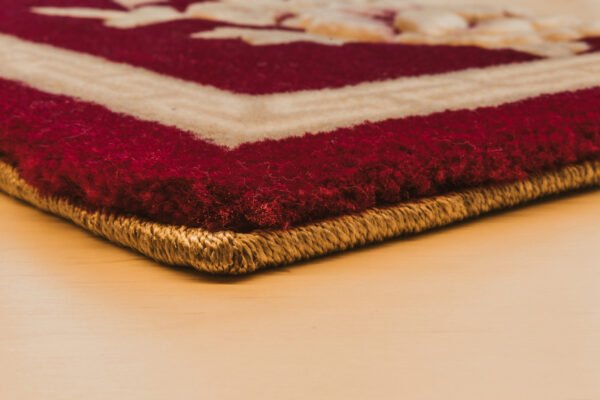

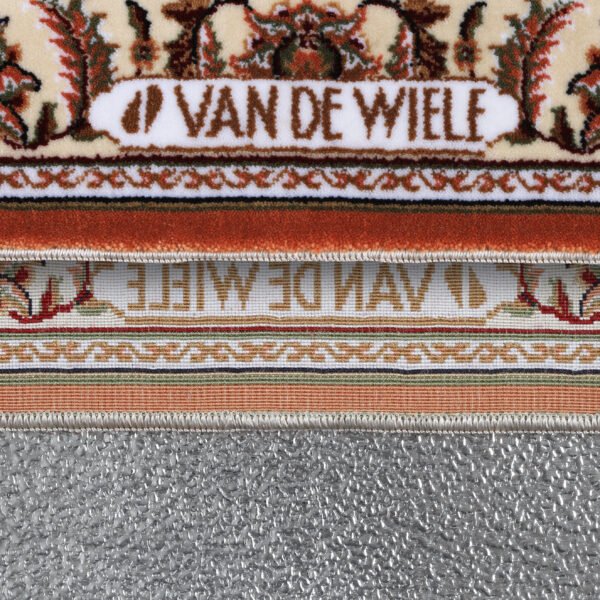

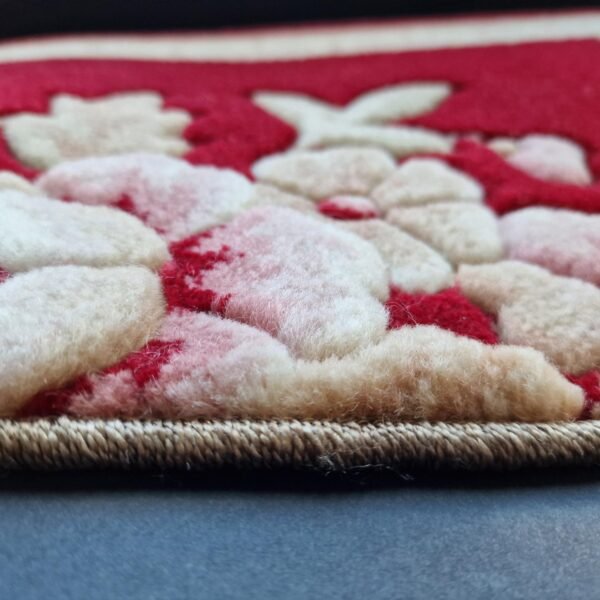

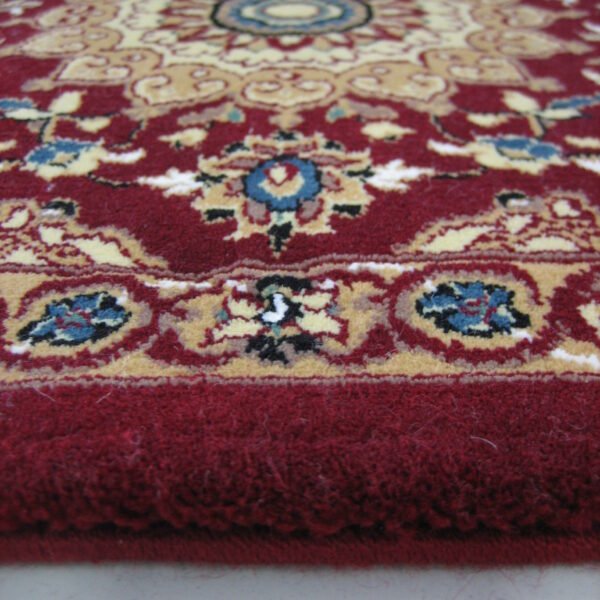

Ultrasmall 4 mm overedging on woven.
Handlook type of carpets.
Specifications
| Speed | 3200 rpm |
|---|---|
| Stitch width | 4 mm |
| Thickness | 18 mm |
| Fabric Feed | Bottom |
| Needles | 1 |
Always included
- DCD/4500 : cutting device
- CP/4500 DAC : pneumatic footlift
- Carburated feeddog
- Special pile pusher
Options
- RPE/4500 : external stitch density
- MEM/4500 : electronic motor
- B/4500 : table and stand
- Also available in 3 threads stitch (see FIG 2).
- 2600S DAC : long puller
- SET 30566 : tape guide
- NCV/2500 : needle cooler
- FH/4500 : oil filter
- TAP/2500 : special upper table
Remarks
- 4510CHX/3 : 3-threads overedging machine available
| Speed | 3200 rpm |
|---|---|
| Stitch width | 4 mm |
| Thickness | 18 mm |
| Fabric feed | Bottom |
| Needles | 1 |
