VBG XXS LONG EVO One needle, long arm, double feed lockstitch sewing machine with 360° vertical axis rotating arm

VBG XXS LONG EVO One needle, long arm, double feed lockstitch sewing machine with 360° vertical axis rotating arm

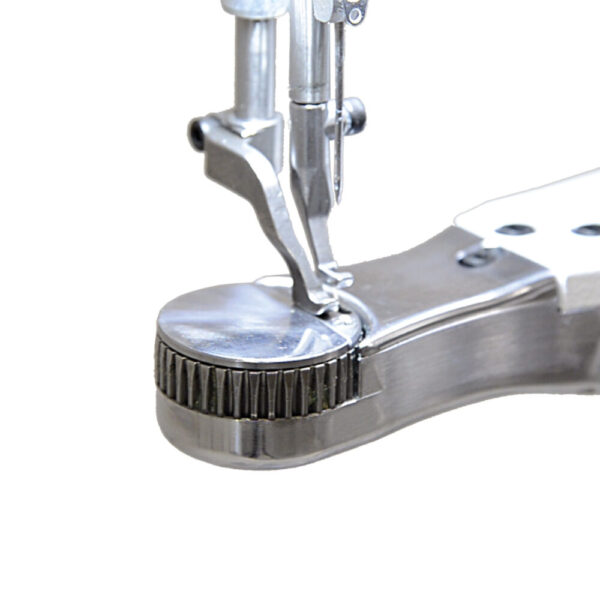

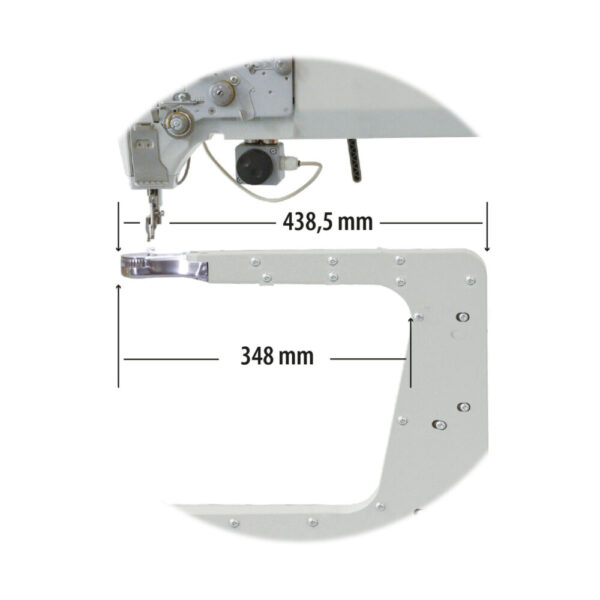

Machine with 360° rotating arm, double feeding. Head lenght 700mm.

Conceived according to new techniques, it is particularly suitable for sewing bags, travelling bags, cases, briefcases, boots and shoes in general.

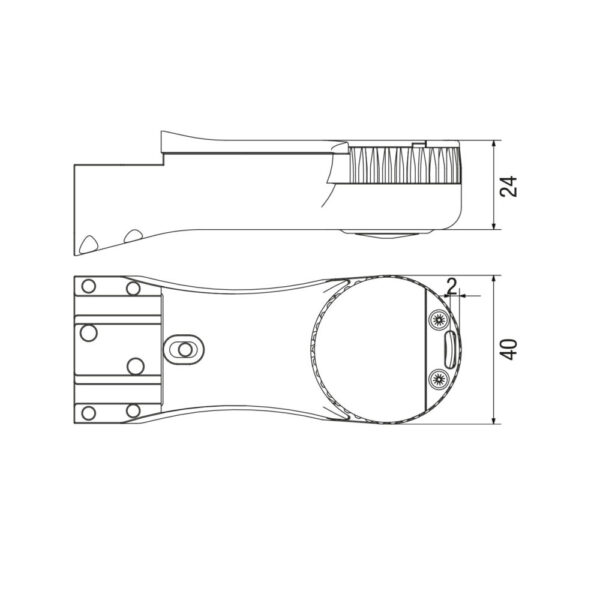

It allows the execution of folds and side finishes very close to borders. The platform thickness is 24 mm.

Stitch maximum lenght 5mm
Sewing maximum speed 1000 rpm

Machine Equipment Options:

Sewing head: DA-867-190020-70-ECO (0867 990105)

Machine with rotating arm and vertical hook: DA-867-190020-70-ECO head. Includes: motor, table with standard tabletop, pneumatic presser foot lift.

Optional extras:

·         Automatic bartacking kit

·         Micrometer guide

·         Electronic handwheel

·         LED lighting



Sewing Head DA-867-190322-70-CLASSIC (0867 990106)

Features, double stitch length, pneumatic presser foot lift, built-in LED lighting, micrometer guide, and automatic bartacking.

Optional: Electronic handwheel.

Sewing Head DA-D867-190922-70-DELTA (4867 990301)

Features stepper motor-driven, presser foot lift, built-in LED lighting, automatic bartacking, built-in motor, X-Z guides, and electronic JOG DIAL handwheel.
