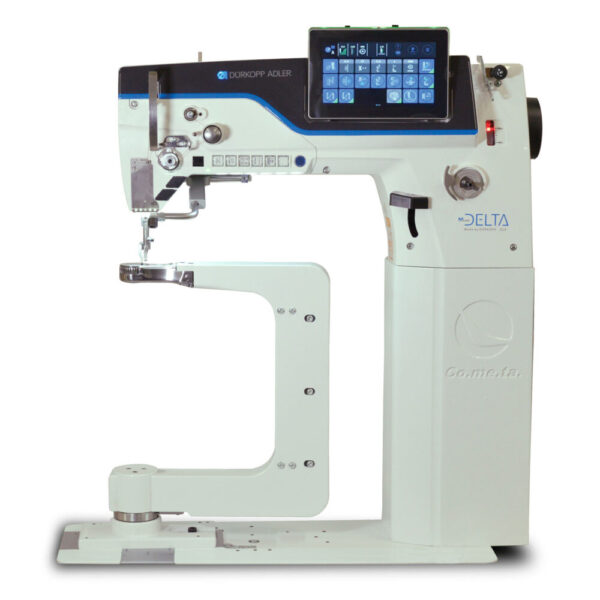

VBG XXS SMALL EVO DELTA One needle, double feed lockstitch sewing machine with 360° vertical axis rotating arm

VBG XXS SMALL EVO DELTA One needle, double feed lockstitch sewing machine with 360° vertical axis rotating arm

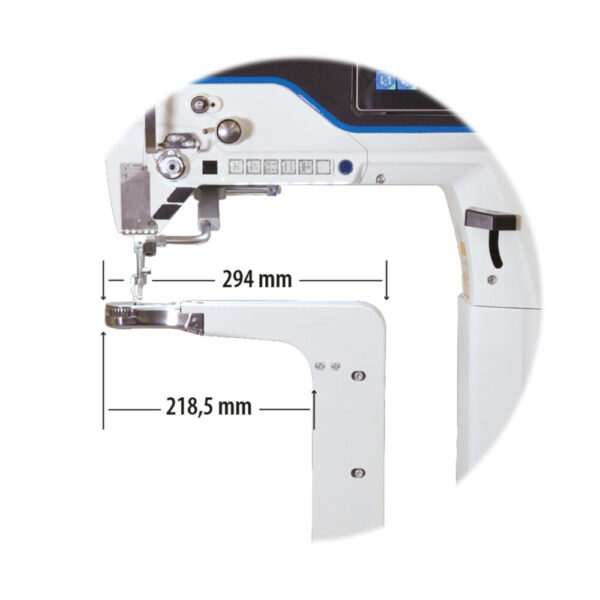

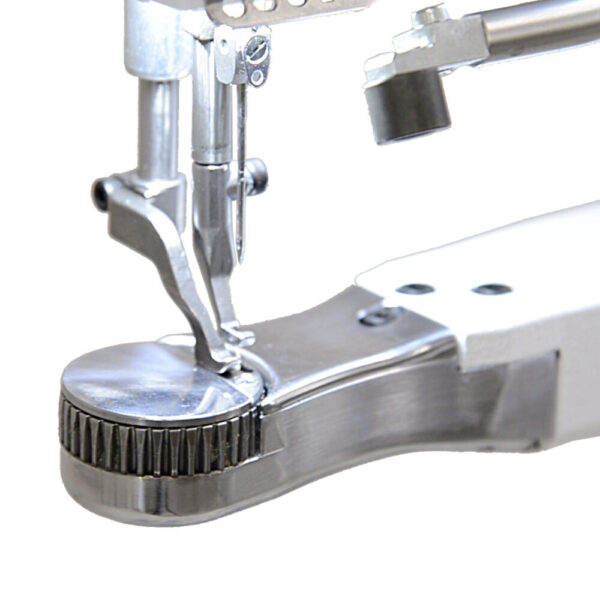

Machine with 360° rotating arm, double feeding.

Conceived according to new techniques, it is particularly suitable for sewing bags, travelling bags, cases, briefcases, boots and shoes in general.

Equipped with the M-TYPE DELTA head, it guarantees the latest control technology for precise and repeatable sewing processes.

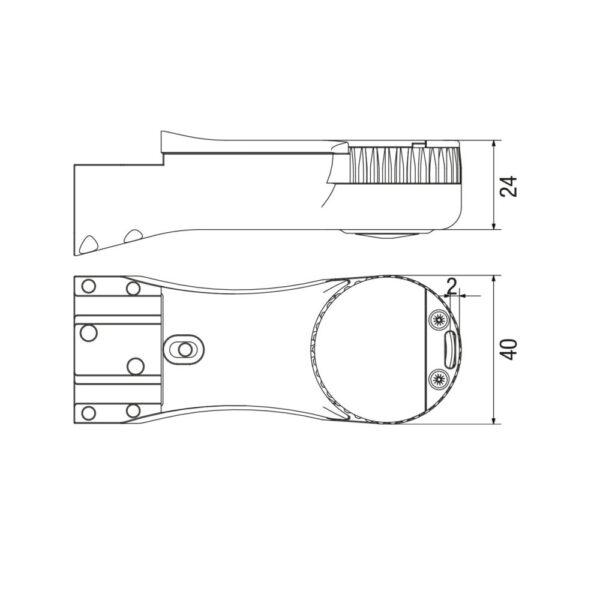

It allows the execution of folds and side finishes very close to borders. The platform thickness is 24 mm.

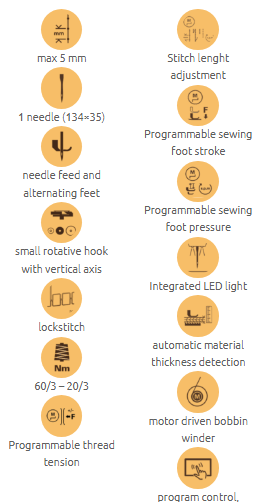

Stitch maximum lenght 5mm
Sewing maximum speed 1000 rpm

Machine Equipment Options:

Machine with rotating arm and vertical hook Sewing Head DA-D867-190922-DELTA (4867 990001) Includes: motor, table with standard tabletop, pneumatic presser foot lift.

Features stepper motor-driven, presser foot lift, built-in LED lighting, automatic bartacking, built-in motor, X-Z guides, and electronic JOG DIAL handwheel.
