VBO TRIPLE FEEDING STANDARD Single needle lockstich sewing machine with oscillating arm and post bed

VBO TRIPLE FEEDING STANDARD Single needle lockstich sewing machine with oscillating arm and post bed

VBO TRIPLE FEEDING STANDARD

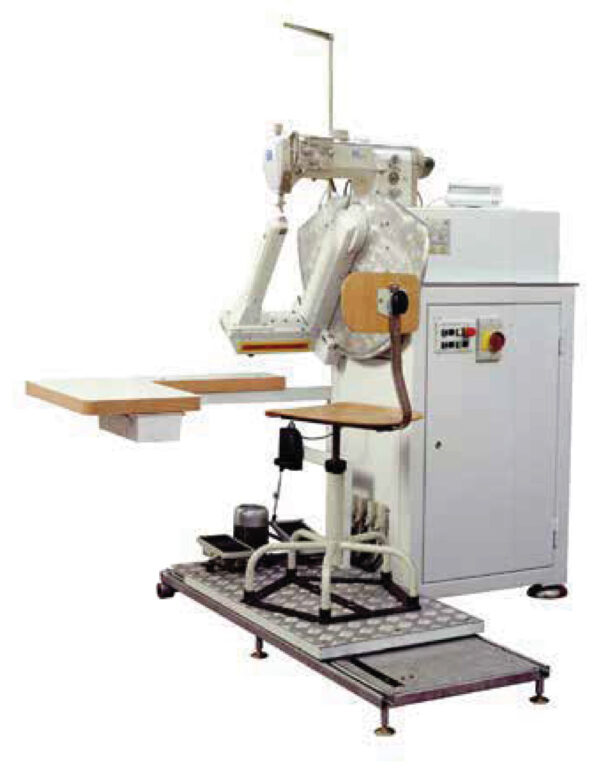

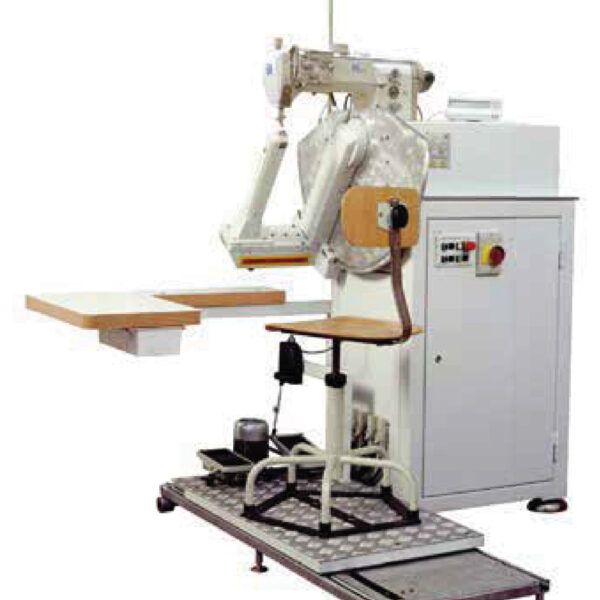

Triple feeding machine, with oscillating arm and large hook. Suitable for stitching bags, cases, briefcases, boots and shoes in general.

It’s an extremely innovative machine which allows the sewing of side finisches very close to the borders, thanks to the particular needle plate and above all to the feed dog, which enables a very linear feeding with the result of a perfectly form stitching.
In addition, the revolutionary oscillating arm, synchronized with the operator’s chair, allows the easy inserting of bags very small or very big.



Column height 400 mm

Column diameter 42 mm

Maximum sewing speed 1000 rpm



Possible sewing heads in use:

Sewing head DA-669-180010-ECO (0669 990001)

Standard oscillating-arm sewing machine, arm movement synchronized with the operator’s chair, triple feed. Cometa hook.

OPTIONAL-additional

·         Automatic bartacking kit

·         Micrometric guide

·         Electronic handwheel

Sewing head DA-669-180312-CLASSIC (0669 990003).

Includes double stitch length, pneumatic presser foot lifter, integrated LED light, Automatic bartacking.

OPTIONAL-additional

·         Electronic handwheel

·         Micrometric guide

Sewing head DA-D669-180912-DELTA (0669 990013)

Includes stepper motor-controlled presser foot lift, integrated LED light, Automatick bartacking kit, integrated motor, X-Z axis guide, JOG DIAL electronic handwheel.
