Pegaso/V

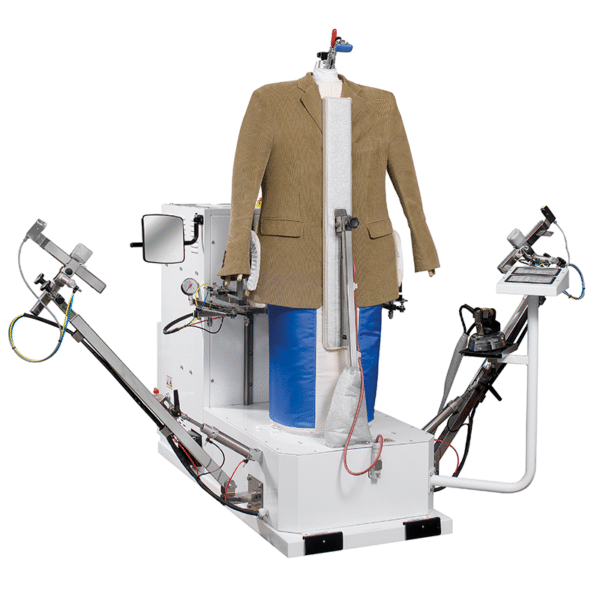

Pneumatic steaming dummy without boiler. To be connected to the steam source

SKU: BAT-PEGASO_V Category: Brand:

Pneumatic steaming dummy without boiler To be connected to the steam source

Technical specifications

Overall dimensions 180x210x161 H cm
Weight 200 Kg
Average steam consumption 15 Kg/h
Superheater power 2,0 kW
Blowing motor power 1,75 HP
Vacuum motor power 3 HP
Compressed air pressure 6 BAR (by request)
Steam working pressure 5 ÷6 BAR (by request)
Standard voltage 400 V+N – 50 Hz
Voltage on request 220 V – 60 Hz – 3-phase
