Pegasus Briefs

Following numbers of the table correspond to the c
ircled numbers in images.

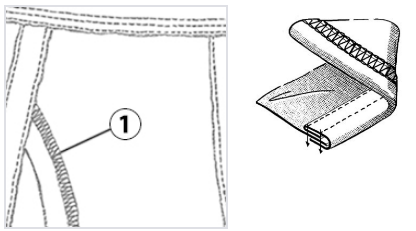

• 1 Binding front flies

Machine model：W3562P-02GX356BS/TK3C

3-needle 5threads flatbed, interlock stitch machine with top cover thread (used as “without top cover thread” on this operation) for binding tape, with tape cutter

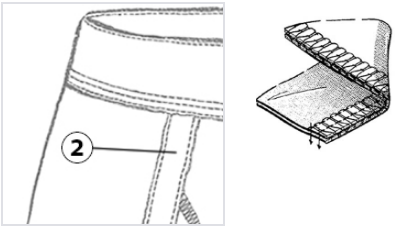

• 2 Attaching front flies

Machine model：MX5214-M03/333-2X4/KS0E

2-needle overlock for plain seaming, with thread chain cutter.

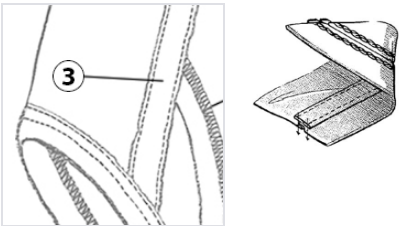

• 3 Attaching tape

Machine model：W3522P-04BX295

2-needle, flat bed, double chainstitch machine for attaching tape

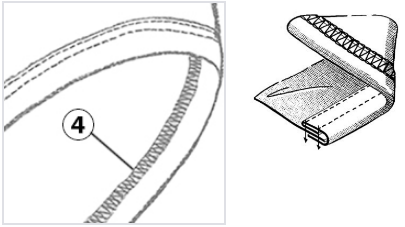

• 4 Binding leg openings

Machine model：W3562P-02GX356BS/TK3C

3-needle 5 threads flatbed, interlock stitch machine with top cover thread (used as “without top cover thread” on this operation) for binding tape, with tape cutter

• 5 Closing crotch

Machine model：FS703P-G2BX452/PD23

4-needle, feed-off-the-arm, interlock stitch machine with top cover thread and double edge trimming for flatseaming, with thread chain cutter, table mounting

• 6 Attaching flat ring elastic

Machine model：W3662HP-33AX356CS/FT9A/RP9A/UT3J

3-needle, cylinder bed, interlock stitch machine with top cover thread (used as “without top cover thread” on this operation) for attaching flat ring elastic, with fabric edge trimmer, rear puller, thread trimmer
