X – KEL-OT

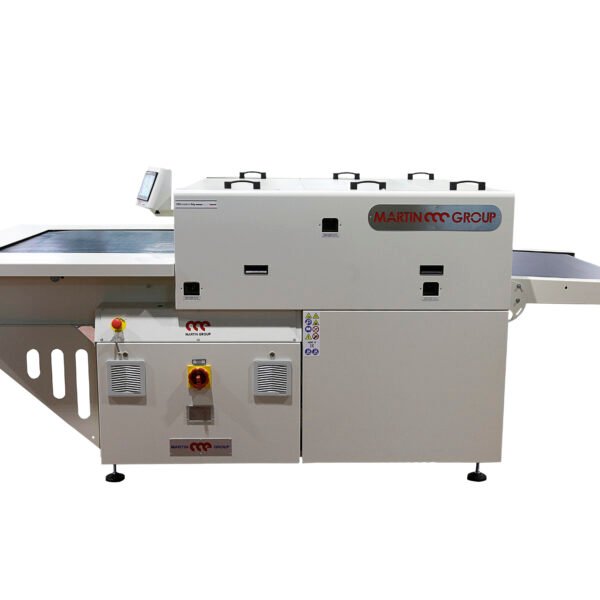

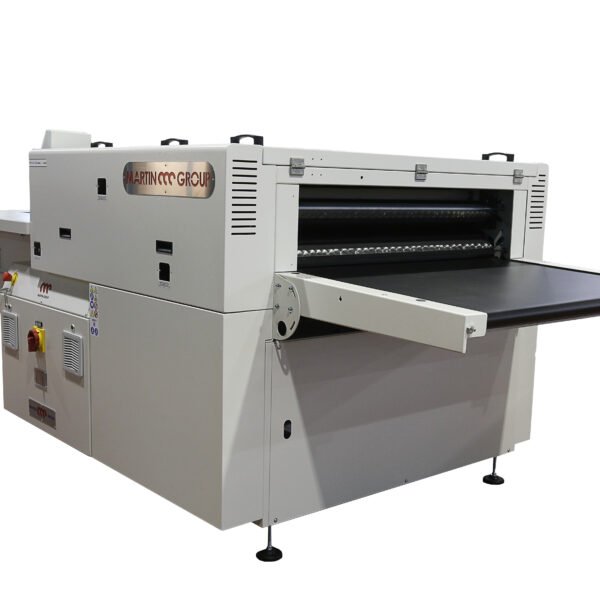

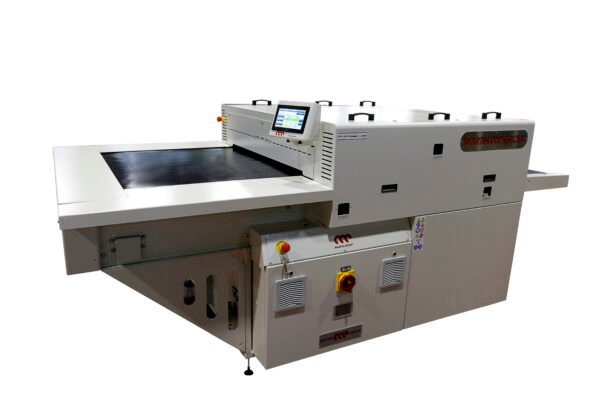

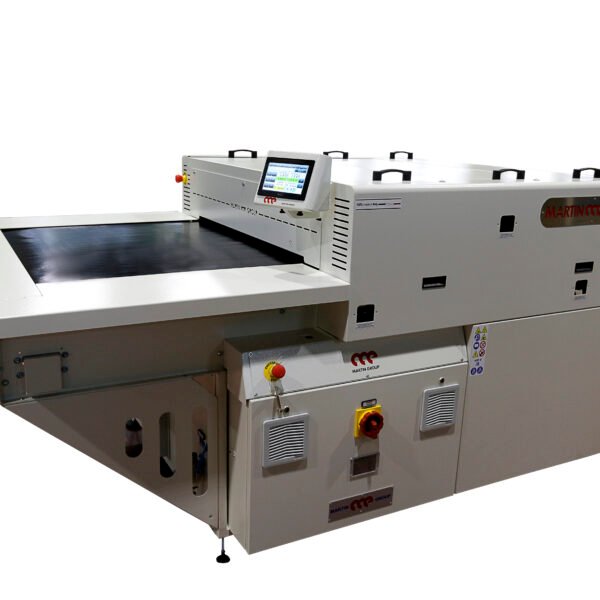

Continuous fusing machine (600-1800mm worktop) with independent upper/lower thermostats, a 9-element heating top, and 0-5 kg/cm² pressure. Optional fully automatic stacker with electronically matched loading races.
X 600-1000-1400-1600-1800 K-EL-OT
Effective worktop mm. 600-1000-1400-1600-1800
- Upper and lower heating system with 2 indipendent electronic thermostats (entry zone, preheating + exit zone)
- Heating top with 9 resistive elements which allow the use of lower temperatures or of a shorter manufacturing time
- System of resistance choking for a thorough uniformity of the working temperature
- Pressure from 0 to 5 kg./sqcm
- Temperature from 0 to 210° C
- Working time adjustment from 5 to 35sec
- Speed from 1 to 10 m per min.
Return version: with return belt
Complete with:
- FULLY AUTOMATICS STACKER WITH ONE OR TWO NLOADING RACES
- Races electronically matchable by means of simple pressing of a button, without using mechanical devices
- Width of the races chosen by the Customer
- Optical recognition system for the horizontal and vertical passing of the fabric
- Gradual lowering of the trucks as the piled parts increase
- Acustic warning of package end
- DESTATIC SYSTEM for the neutralization of the electrostatic charges of the fabrics
